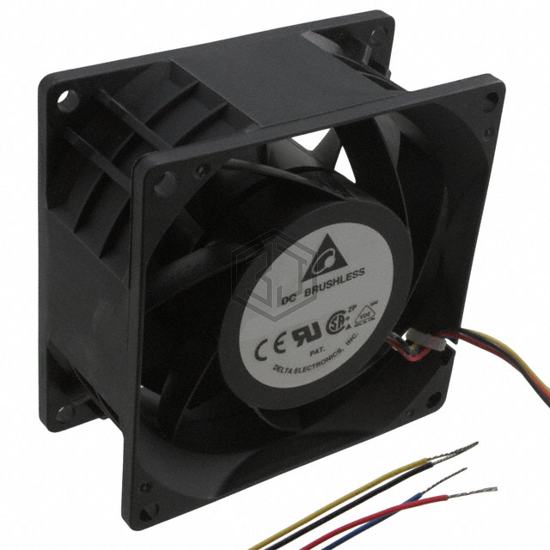

FAN AXIAL 80X38MM 12VDC WIRE
PFB0812UHE-EP is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 80X38MM 12VDC WIRE. Key specifications: operating temperature -13 ~ 140°F (-25 ~ 60°C), voltage - rated 12VDC, size / dimension Square - 80mm L x 80mm H, termination 4 Wire Leads.
In Stock: 270
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 38.00mm |
| Air Flow | 91.8 CFM (2.57m³/min) |
| Static Pressure | 0.974 in H2O (242.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) |
| Noise | 57.5dB(A) |
| Power (Watts) | 11.88 W |
| RPM | 6550 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.441 lb (200.03 g) |
