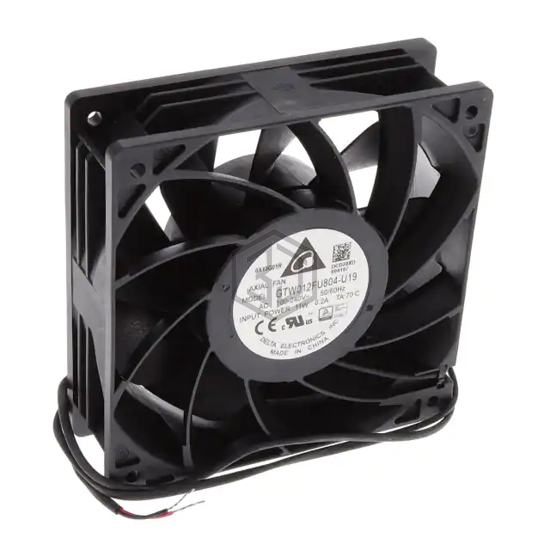

120X120X38MM 220VAC FAN EC MOTOR
GTW012FU804-U19 is a AC Fans manufactured by Delta Electronics. 120X120X38MM 220VAC FAN EC MOTOR. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 220VAC, size / dimension Square - 120mm L x 120mm H, termination 2 Wire Leads.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 220VAC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 145.0 CFM (4.06m³/min) |
| Static Pressure | 0.450 in H2O (112.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Noise | 54.9dB(A) |
| Power (Watts) | 11.00W |
| RPM | 4200 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 0.081 lb (36.74 g) |
Submit your RFQ for GTW012FU804-U19 and get a quote within 24 hours.
