120X145X38MM 100 / 240V AC FAN W

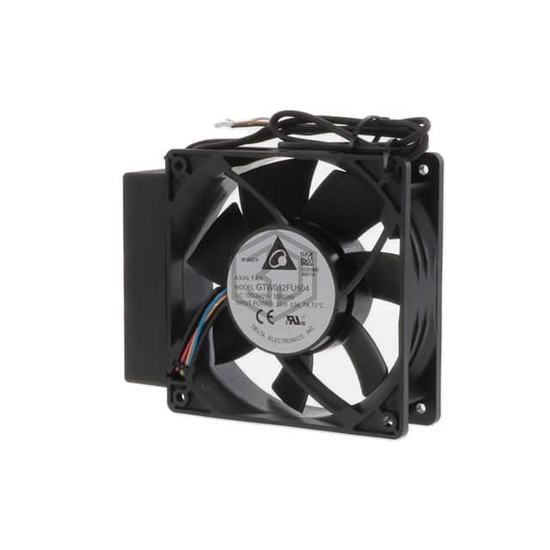

GTW012FU604 is a AC Fans manufactured by Delta Electronics. 120X145X38MM 100 / 240V AC FAN W. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 230VAC, size / dimension Square - 120mm L x 120mm H, termination 5 Wire Leads.
In Stock: 115
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 184.0 CFM (5.15m³/min) |
| Static Pressure | 0.840 in H2O (209.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 55.5dB(A) |
| Power (Watts) | 18.00W |
| RPM | 4100 RPM |
| Termination | 5 Wire Leads |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | - |
| Weight | - |
