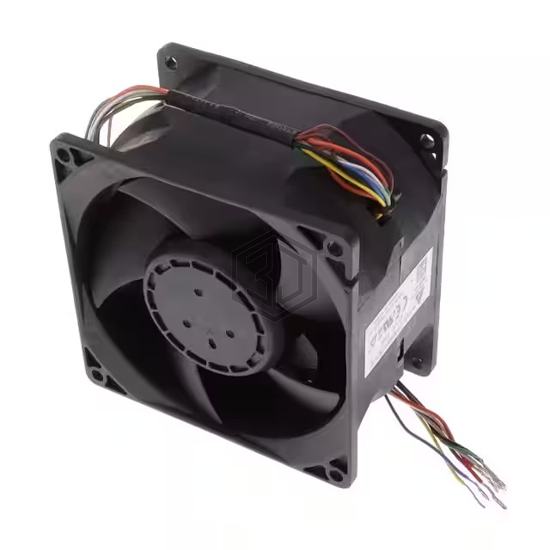

92X92X56MM 12V DC FAN W/PWM CONT
GFB0912ES-E is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 92X92X56MM 12V DC FAN W/PWM CONT. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 92mm L x 92mm H, termination 4 Wire Leads per Fan.
In Stock: 167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 56.00mm |
| Air Flow | 165.3 CFM (4.63m³/min) |
| Static Pressure | 4.670 in H2O (1163.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 78.5dB(A) |
| Power (Watts) | 47.4 W |
| RPM | 11200 Front, 11400 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cURus, TUV |
| Weight | - |
Submit your RFQ for GFB0912ES-E and get a quote within 24 hours.
