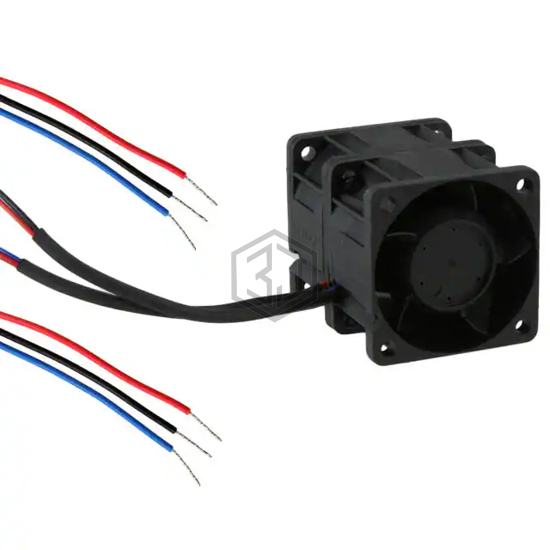

FAN AXIAL DUAL 40X48MM 12VDC
GFB0412SHG-F00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL DUAL 40X48MM 12VDC. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 3 Wire Leads per Fan.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 48.00mm |
| Air Flow | 24.0 CFM (0.672m³/min) |
| Static Pressure | 1.200 in H2O (298.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 60.0dB(A) |
| Power (Watts) | 10.2 W |
| RPM | 12000 Front, 10600 Rear |
| Termination | 3 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.167 lb (75.75 g) |
