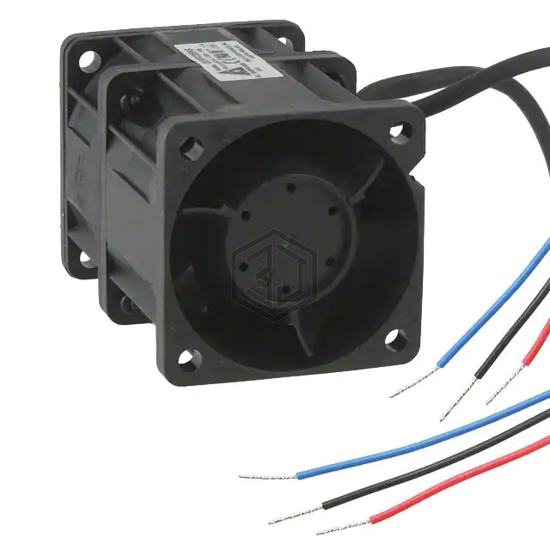

FAN AXIAL DUAL 40X56MM 12VDC
GFB0412GHS-CF00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL DUAL 40X56MM 12VDC. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 3 Wire Leads per Fan.
In Stock: 515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 56.00mm |
| Air Flow | 34.9 CFM (0.977m³/min) |
| Static Pressure | 2.397 in H2O (597.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 66.5dB(A) |
| Power (Watts) | 21.36 W |
| RPM | 16100 Front, 17100 Rear |
| Termination | 3 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.187 lb (84.82 g) |
Submit your RFQ for GFB0412GHS-CF00 and get a quote within 24 hours.
