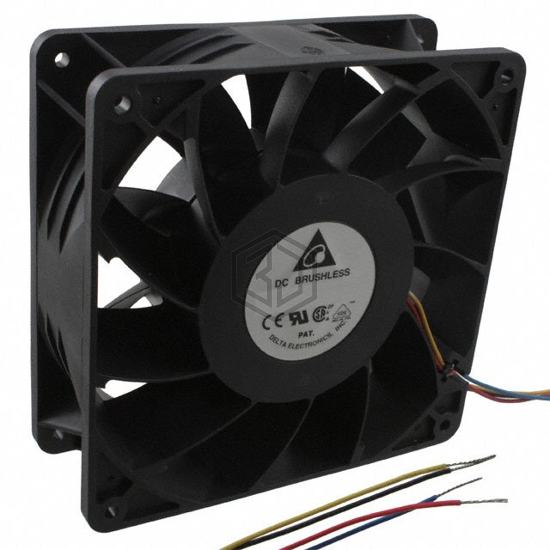

FAN AXIAL 139.7X50.8MM 24VDC
FFB1424VHG-EP is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 139.7X50.8MM 24VDC. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 139.7mm L x 139.7mm H, termination 4 Wire Leads.
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 139.7mm L x 139.7mm H |
| Width | 50.80mm |
| Air Flow | 252.1 CFM (7.06m³/min) |
| Static Pressure | 0.644 in H2O (160.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) |
| Noise | 58.5dB(A) |
| Power (Watts) | 24 W |
| RPM | 3200 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.5 lbs (670.0 g) |
