FAN AXIAL 172X50.8MM 48VDC WIRE

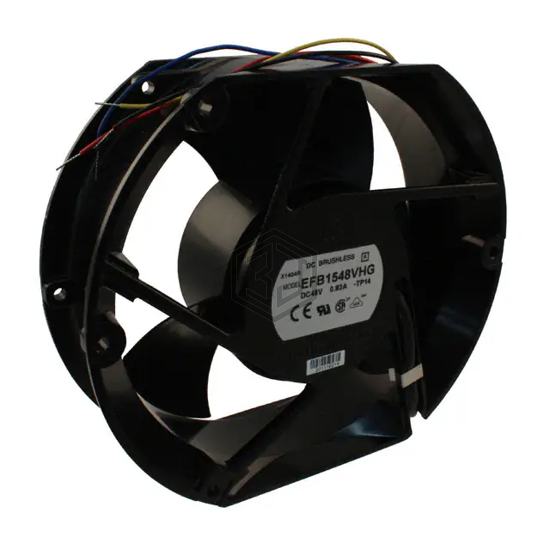

EFB1548VHG-TP14 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 172X50.8MM 48VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 48VDC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 4 Wire Leads.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 50.80mm |
| Air Flow | 302.3 CFM (8.46m³/min) |
| Static Pressure | 0.937 in H2O (233.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 60.0dB(A) |
| Power (Watts) | 23.52 W |
| RPM | 4000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.9 lbs (861.8 g) |
Submit your RFQ for EFB1548VHG-TP14 and get a quote within 24 hours.
