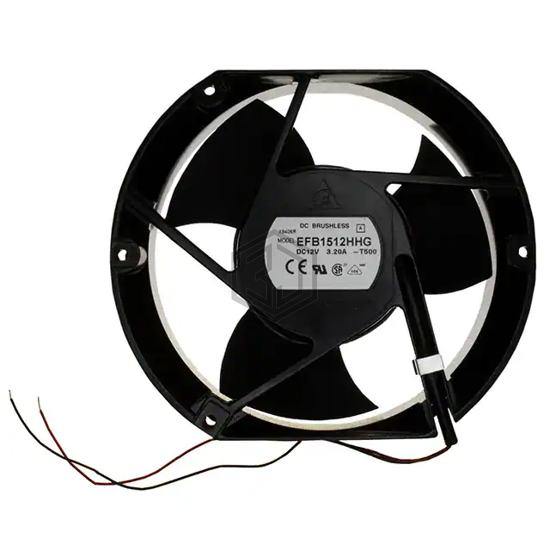

FAN AXIAL 172X50.8MM 12VDC WIRE
EFB1512HHG-T500 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 172X50.8MM 12VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 2 Wire Leads.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 50.80mm |
| Air Flow | 279.7 CFM (7.83m³/min) |
| Static Pressure | 0.800 in H2O (199.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Noise | 57.5dB(A) |
| Power (Watts) | 21.48 W |
| RPM | 3700 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.9 lbs (861.8 g) |
Submit your RFQ for EFB1512HHG-T500 and get a quote within 24 hours.
