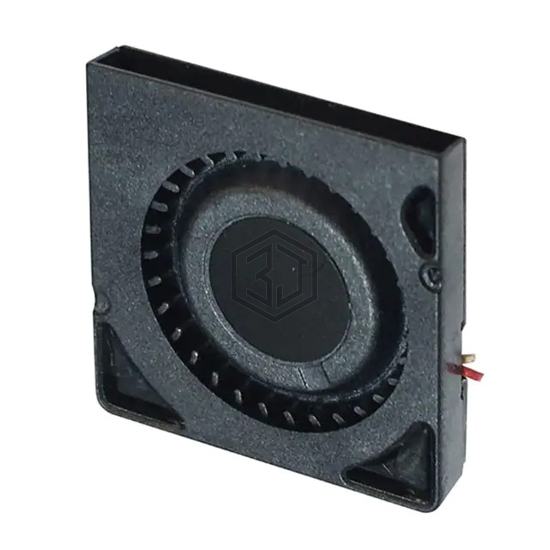

FAN BLOWER 15X3.5MM SLEEVE 3VDC
BSB01503HA3-00CGE is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN BLOWER 15X3.5MM SLEEVE 3VDC. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 3VDC, size / dimension Square - 15mm L x 15mm H, termination 3 Position Rectangular Connector.
In Stock: 2,495
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 3VDC |
| Size / Dimension | Square - 15mm L x 15mm H |
| Width | 3.50mm |
| Air Flow | 0.170 CFM (0.005m³/min) |
| Static Pressure | 0.154 in H2O (38.4 Pa) |
| Bearing Type | Sleeve |
| Fan Type | Blower |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 30.0dB(A) |
| Power (Watts) | 150 mW |
| RPM | 13800 RPM |
| Termination | 3 Position Rectangular Connector |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | - |
| Weight | 0.003 lb (1.36 g) |
Submit your RFQ for BSB01503HA3-00CGE and get a quote within 24 hours.
