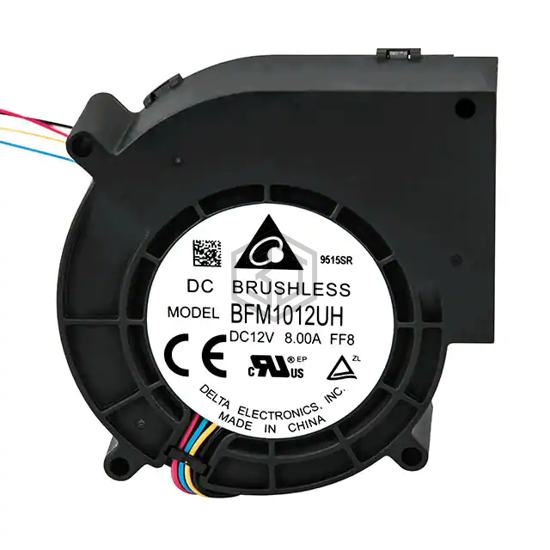

BFM1012UHFF8 - Delta Electronics - DC Brushless Fans (BLDC)

BFM1012UHFF8

Delta Electronics

97X94X33MM 12VDC BLOWER W/SPEED

BFM1012UHFF8 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 97X94X33MM 12VDC BLOWER W/SPEED. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 12VDC, size / dimension Rectangular/Rounded - 96.6mm L x 94.3mm H, termination 8 Position Rectangular Connector.

In Stock: 474

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated12VDC
Size / DimensionRectangular/Rounded - 96.6mm L x 94.3mm H
Width32.90mm
Air Flow66.0 CFM (1.85m³/min)
Static Pressure6.806 in H2O (1695.3 Pa)
Bearing TypeBall
Fan TypeBlower
FeaturesLocked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise70.5dB(A)
Power (Watts)69.6 W
RPM8700 RPM
Termination8 Position Rectangular Connector
Ingress Protection-
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Approval AgencyCE, cURus, TUV
Weight0.452 lb (205.02 g)

Frequently Asked Questions

BFM1012UHFF8 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 97X94X33MM 12VDC BLOWER W/SPEED

The operating temperature range of BFM1012UHFF8 is 14 ~ 140°F (-10 ~ 60°C).

The supply voltage of BFM1012UHFF8 is 12VDC.

The size of BFM1012UHFF8 is Rectangular/Rounded - 96.6mm L x 94.3mm H.
