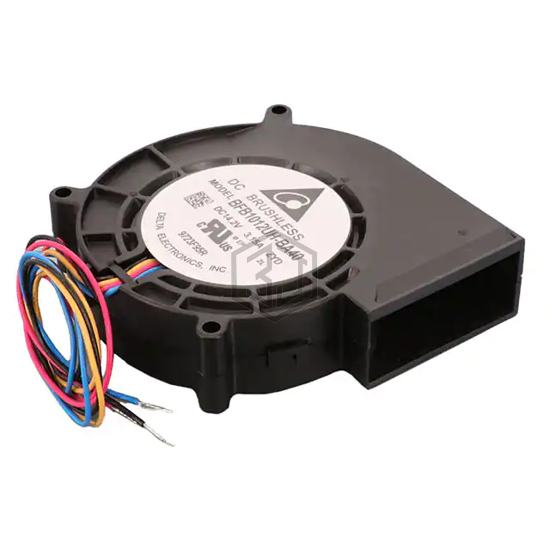

97X94X25MM 14.2V DC BLOWER W/SPE
BFB1012UH-BA40ZYD is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 97X94X25MM 14.2V DC BLOWER W/SPE. Key specifications: operating temperature 14 ~ 122°F (-10 ~ 50°C), voltage - rated 14.2VDC, size / dimension Rectangular/Rounded - 96.6mm L x 94.3mm H, termination 4 Wire Leads.
In Stock: 215
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 14.2VDC |
| Size / Dimension | Rectangular/Rounded - 96.6mm L x 94.3mm H |
| Width | 24.90mm |
| Air Flow | 37.0 CFM (1.04m³/min) |
| Static Pressure | 4.764 in H2O (1186.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 68.0dB(A) |
| Power (Watts) | 30.53 W |
| RPM | 7000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 122°F (-10 ~ 50°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.386 lb (175.09 g) |
Submit your RFQ for BFB1012UH-BA40ZYD and get a quote within 24 hours.
