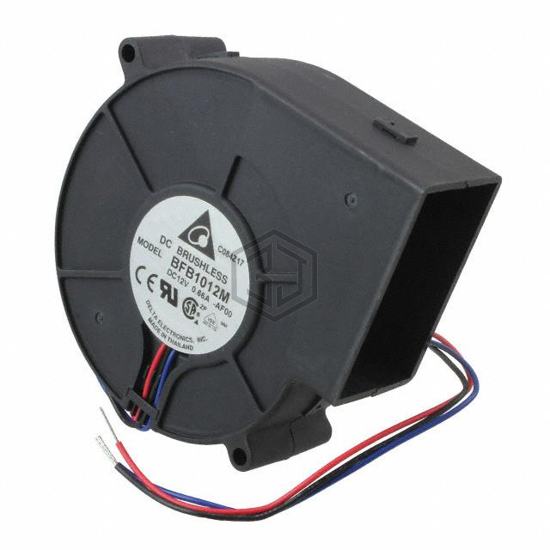

FAN BLOWER 97.2X33MM 12VDC WIRE
BFB1012M-AF00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN BLOWER 97.2X33MM 12VDC WIRE. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 12VDC, size / dimension Rectangular/Rounded - 97.2mm L x 94.4mm H, termination 3 Wire Leads.
In Stock: 2,287
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Rounded - 97.2mm L x 94.4mm H |
| Width | 33.00mm |
| Air Flow | 22.6 CFM (0.633m³/min) |
| Static Pressure | 0.893 in H2O (222.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 52.5dB(A) |
| Power (Watts) | 6.6 W |
| RPM | 3200 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.366 lb (166.01 g) |
Submit your RFQ for BFB1012M-AF00 and get a quote within 24 hours.
