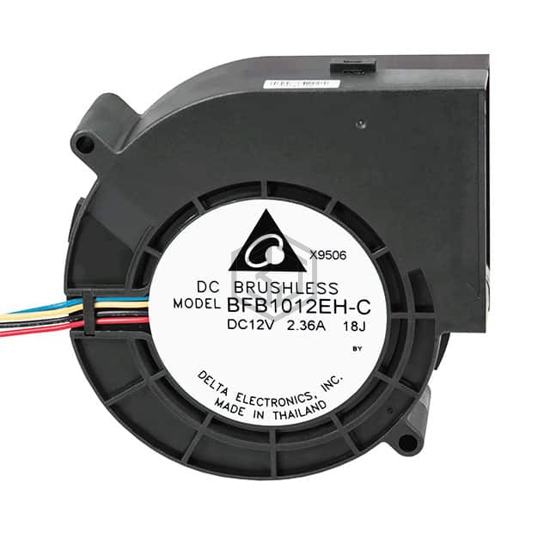

97X94X33MM 12VDC BLOWER W/SPEED
BFB1012EH-C18J is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 97X94X33MM 12VDC BLOWER W/SPEED. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Rectangular/Rounded - 96.6mm L x 94.3mm H, termination 4 Wire Leads.
In Stock: 448
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Rounded - 96.6mm L x 94.3mm H |
| Width | 32.90mm |
| Air Flow | 45.5 CFM (1.27m³/min) |
| Static Pressure | 3.694 in H2O (920.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 62.0dB(A) |
| Power (Watts) | 23.64 W |
| RPM | 5800 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | - |
| Weight | 0.397 lb (180.08 g) |
