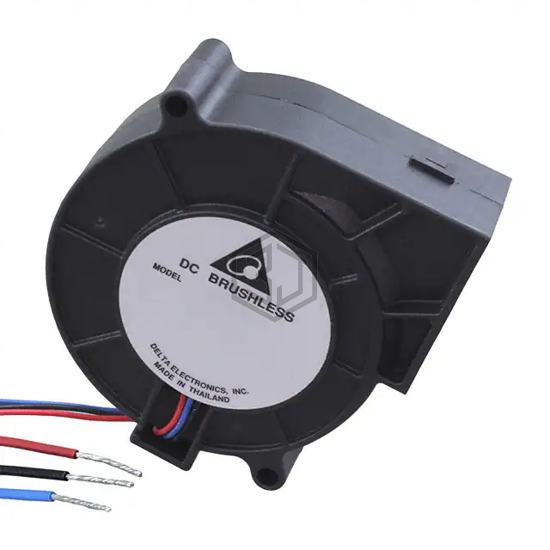

BFB0712HHD77 - Delta Electronics - DC Brushless Fans (BLDC)

BFB0712HHD77

Delta Electronics

76X76X25MM 12V DC BLOWER W/PWM C

BFB0712HHD77 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 76X76X25MM 12V DC BLOWER W/PWM C. Key specifications: operating temperature -40 ~ 185°F (-40 ~ 85°C), voltage - rated 12VDC, size / dimension Rectangular/Rounded - 75.7mm L x 80.6mm H, termination 3 Wire Leads.

In Stock: 796

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated12VDC
Size / DimensionRectangular/Rounded - 75.7mm L x 80.6mm H
Width25.00mm
Air Flow14.7 CFM (0.412m³/min)
Static Pressure1.412 in H2O (351.7 Pa)
Bearing TypeBall
Fan TypeBlower
FeaturesLocked Rotor Protection, PWM Control
Noise50.0dB(A)
Power (Watts)8.15 W
RPM5500 RPM
Termination3 Wire Leads
Ingress ProtectionIP55 - Dust Protected, Water Resistant
Operating Temperature-40 ~ 185°F (-40 ~ 85°C)
Approval Agency-
Weight0.188 lb (85.28 g)

Frequently Asked Questions

BFB0712HHD77 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 76X76X25MM 12V DC BLOWER W/PWM C

The operating temperature range of BFB0712HHD77 is -40 ~ 185°F (-40 ~ 85°C).

The supply voltage of BFB0712HHD77 is 12VDC.

The size of BFB0712HHD77 is Rectangular/Rounded - 75.7mm L x 80.6mm H.
