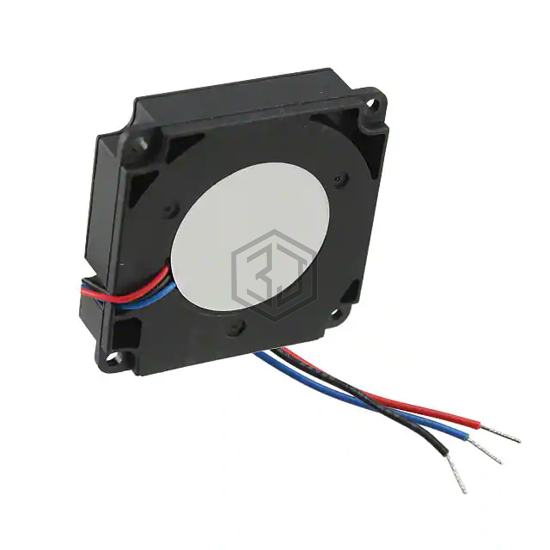

FAN BLOWER 40X10MM 5VDC WIRE
BFB0405HHA-TZP4 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN BLOWER 40X10MM 5VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Square - 40mm L x 40mm H, termination 3 Wire Leads.
In Stock: 1,880
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 5VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 10.00mm |
| Air Flow | 3.0 CFM (0.084m³/min) |
| Static Pressure | 0.564 in H2O (140.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 34.5dB(A) |
| Power (Watts) | 800 mW |
| RPM | 8500 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.027 lb (12.25 g) |
Submit your RFQ for BFB0405HHA-TZP4 and get a quote within 24 hours.
