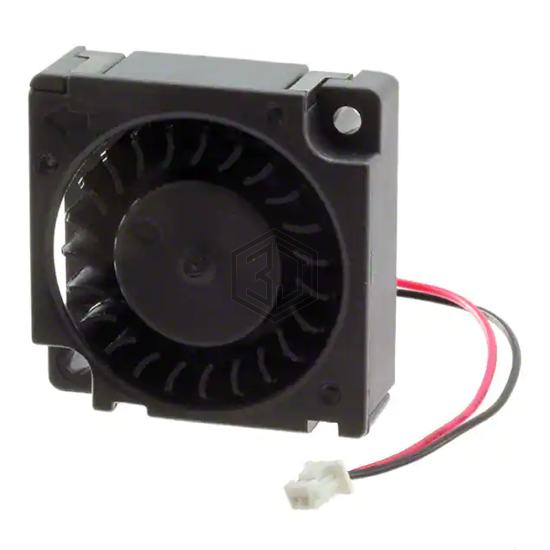

BFB0312HA-A116 - Delta Electronics - DC Brushless Fans (BLDC)

BFB0312HA-A116

Delta Electronics

FAN BLOWER 30X10MM 12VDC WIRE

BFB0312HA-A116 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN BLOWER 30X10MM 12VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 30mm L x 30mm H, termination 2 Position Rectangular Connector.

In Stock: 12,936

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated12VDC
Size / DimensionSquare - 30mm L x 30mm H
Width10.00mm
Air Flow1.5 CFM (0.042m³/min)
Static Pressure0.285 in H2O (71.0 Pa)
Bearing TypeBall
Fan TypeBlower
FeaturesLocked Rotor Protection
Noise29.0dB(A)
Power (Watts)720 mW
RPM7500 RPM
Termination2 Position Rectangular Connector
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, CSA, UL, VDE
Weight0.023 lb (10.43 g)

Frequently Asked Questions

BFB0312HA-A116 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN BLOWER 30X10MM 12VDC WIRE

The operating temperature range of BFB0312HA-A116 is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of BFB0312HA-A116 is 12VDC.

The size of BFB0312HA-A116 is Square - 30mm L x 30mm H.
