222X222X78MM 115 / 230V AC FAN W

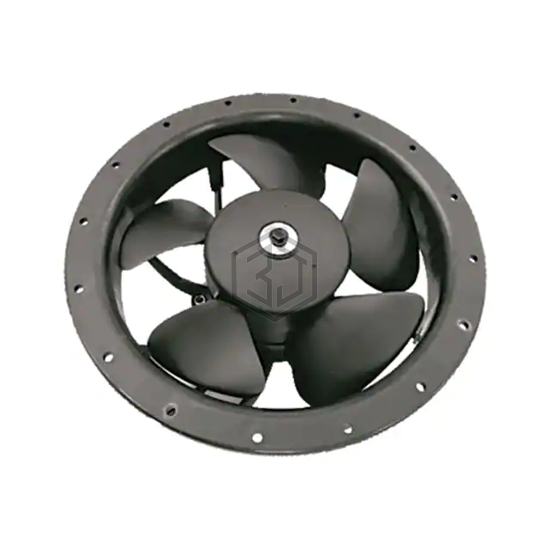

AFL22AUHW-P1 is a AC Fans manufactured by Delta Electronics. 222X222X78MM 115 / 230V AC FAN W. Key specifications: operating temperature -40 ~ 131°F (-40 ~ 55°C), voltage - rated 115/230VAC, size / dimension Round - 222mm Dia, termination 3 Wire Leads.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115/230VAC |
| Size / Dimension | Round - 222mm Dia |
| Width | 85.70mm |
| Air Flow | 323.9 CFM (9.07m³/min) |
| Static Pressure | 0.630 in H2O (156.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP) |
| Noise | 57.0dB(A) |
| Power (Watts) | 8.00W, 17.00W |
| RPM | 1800/2500 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature | -40 ~ 131°F (-40 ~ 55°C) |
| Approval Agency | cURus |
| Weight | - |
Submit your RFQ for AFL22AUHW-P1 and get a quote within 24 hours.
