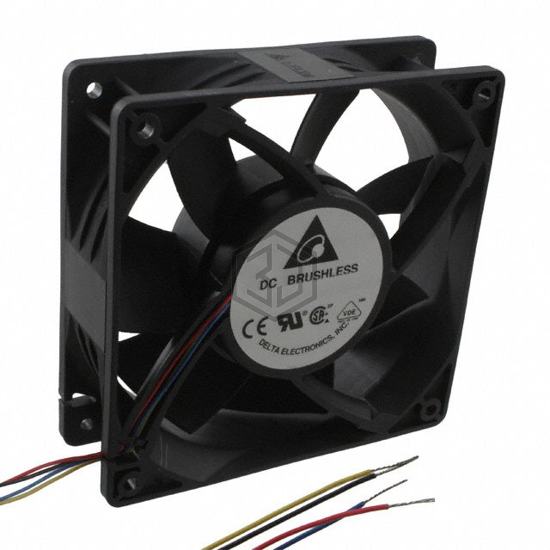

FAN AXIAL 120X38MM 24VDC WIRE
AFB1224EHE-EP is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 120X38MM 24VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 120mm L x 120mm H, termination 4 Wire Leads.
In Stock: 136
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 212.6 CFM (5.95m³/min) |
| Static Pressure | 0.844 in H2O (210.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 58.5dB(A) |
| Power (Watts) | 20.4 W |
| RPM | 4600 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.772 lb (350.17 g) |
Submit your RFQ for AFB1224EHE-EP and get a quote within 24 hours.
