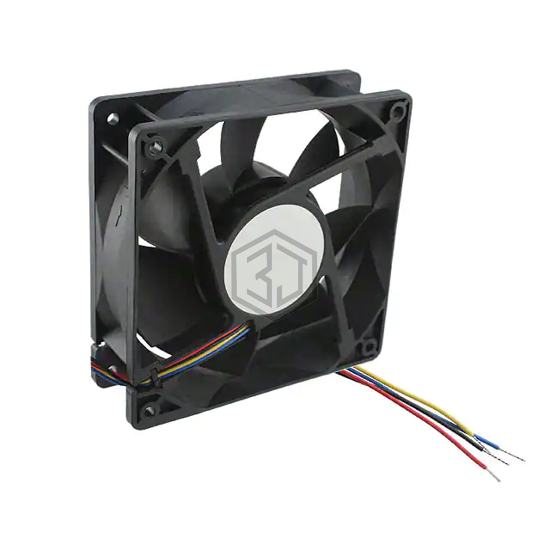

FAN AXIAL 120X38MM 12VDC WIRE
AFB1212HHE-TP02 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 120X38MM 12VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 120mm L x 120mm H, termination 4 Wire Leads.
In Stock: 1,497
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 120.1 CFM (3.36m³/min) |
| Static Pressure | 0.354 in H2O (88.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 44.0dB(A) |
| Power (Watts) | 4.8 W |
| RPM | 2900 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.565 lb (256.28 g) |
Submit your RFQ for AFB1212HHE-TP02 and get a quote within 24 hours.
