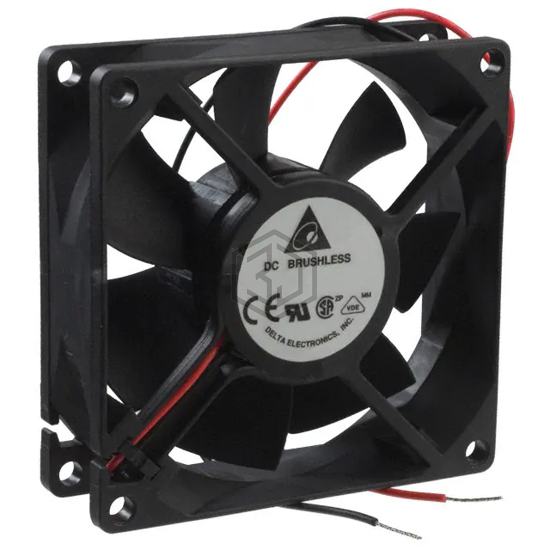

FAN AXIAL 80X80X38MM 24V WIRE
AFB0824GHE is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 80X80X38MM 24V WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 80mm L x 80mm H, termination 2 Wire Leads.
In Stock: 1,300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 38.00mm |
| Air Flow | 99.0 CFM (2.77m³/min) |
| Static Pressure | 1.006 in H2O (250.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Noise | 54.0dB(A) |
| Power (Watts) | 15.6 W |
| RPM | 6800 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.344 lb (156.04 g) |
Submit your RFQ for AFB0824GHE and get a quote within 24 hours.
