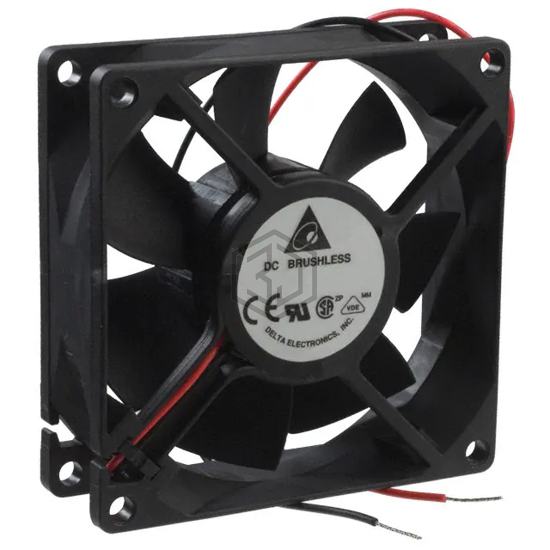

AFB0812MD-A - Delta Electronics - DC Brushless Fans (BLDC)

AFB0812MD-A

Delta Electronics

FAN AXIAL 80X80X20MM 12V WIRE

AFB0812MD-A is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 80X80X20MM 12V WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 80mm L x 80mm H, termination 2 Wire Leads.

In Stock: 1,640

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated12VDC
Size / DimensionSquare - 80mm L x 80mm H
Width20.00mm
Air Flow41.7 CFM (1.17m³/min)
Static Pressure0.182 in H2O (45.3 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesLocked Rotor Protection
Noise36.0dB(A)
Power (Watts)1.92 W
RPM3600 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, CSA, UL, VDE
Weight0.161 lb (73.03 g)

Frequently Asked Questions

AFB0812MD-A is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 80X80X20MM 12V WIRE

The operating temperature range of AFB0812MD-A is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of AFB0812MD-A is 12VDC.

The size of AFB0812MD-A is Square - 80mm L x 80mm H.
