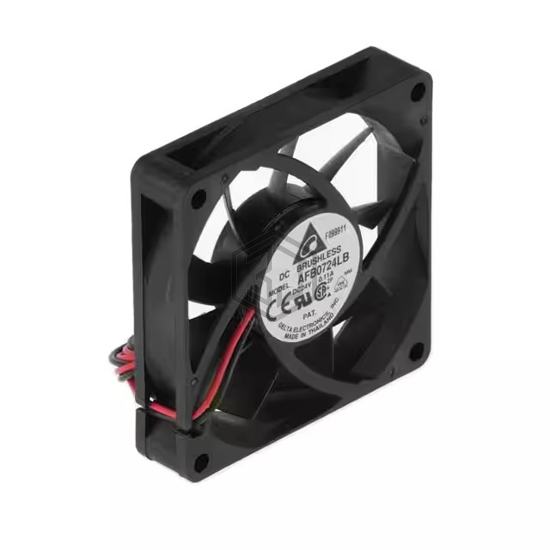

AFB0724LB - Delta Electronics - DC Brushless Fans (BLDC)

AFB0724LB

Delta Electronics

70X70X15MM 24V DC FAN

AFB0724LB is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 70X70X15MM 24V DC FAN. Key specifications: voltage - rated 24VDC, size / dimension Square - 70mm L x 70mm H, termination 2 Wire Leads, power (watts) 1.44 W.

In Stock: 8,280

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated24VDC
Size / DimensionSquare - 70mm L x 70mm H
Width15.00mm
Air Flow23.4 CFM (0.655m³/min)
Static Pressure0.089 in H2O (22.2 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesLocked Rotor Protection
Noise26.5dB(A)
Power (Watts)1.44 W
RPM2800 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature-
Approval AgencyCE, CSA, UL, VDE
Weight0.104 lb (47.17 g)

Frequently Asked Questions

AFB0724LB is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 70X70X15MM 24V DC FAN

The supply voltage of AFB0724LB is 24VDC.

The size of AFB0724LB is Square - 70mm L x 70mm H.

The termination type of AFB0724LB is 2 Wire Leads.
