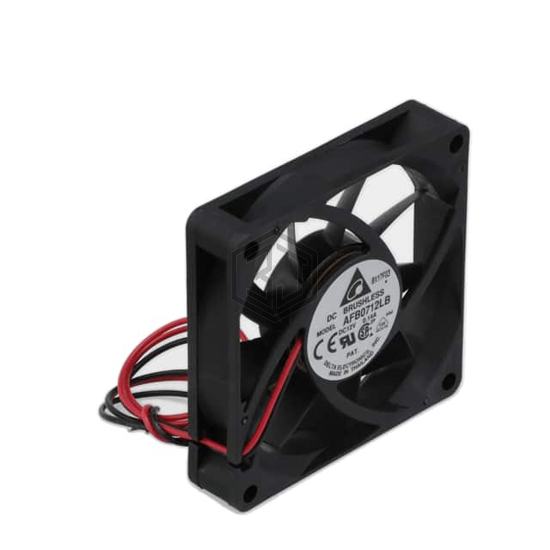

AFB0712LB - Delta Electronics - DC Brushless Fans (BLDC)

AFB0712LB

Delta Electronics

70X70X15MM 12V DC FAN

AFB0712LB is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 70X70X15MM 12V DC FAN. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 70mm L x 70mm H, termination 2 Wire Leads.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated12VDC
Size / DimensionSquare - 70mm L x 70mm H
Width15.00mm
Air Flow23.4 CFM (0.655m³/min)
Static Pressure0.089 in H2O (22.2 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesLocked Rotor Protection
Noise26.5dB(A)
Power (Watts)960 mW
RPM2800 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, CSA, UL, VDE
Weight0.104 lb (47.17 g)

Frequently Asked Questions

AFB0712LB is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 70X70X15MM 12V DC FAN

The operating temperature range of AFB0712LB is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of AFB0712LB is 12VDC.

The size of AFB0712LB is Square - 70mm L x 70mm H.
