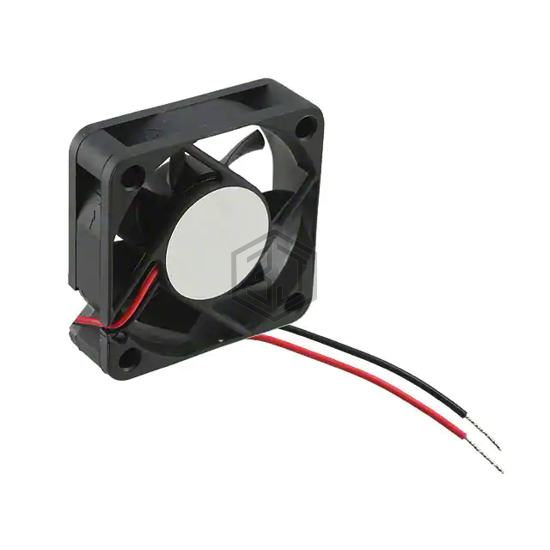

AFB0505MB - Delta Electronics - DC Brushless Fans (BLDC)

AFB0505MB

Delta Electronics

FAN AXIAL 50X15MM BALL 5VDC WIRE

AFB0505MB is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 50X15MM BALL 5VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Square - 50mm L x 50mm H, termination 2 Wire Leads.

In Stock: 571

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated5VDC
Size / DimensionSquare - 50mm L x 50mm H
Width15.00mm
Air Flow12.4 CFM (0.347m³/min)
Static Pressure0.181 in H2O (45.1 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesLocked Rotor Protection
Noise28.0dB(A)
Power (Watts)1.1 W
RPM4800 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, CSA, UL, VDE
Weight0.071 lb (32.21 g)

Frequently Asked Questions

AFB0505MB is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 50X15MM BALL 5VDC WIRE

The operating temperature range of AFB0505MB is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of AFB0505MB is 5VDC.

The size of AFB0505MB is Square - 50mm L x 50mm H.
