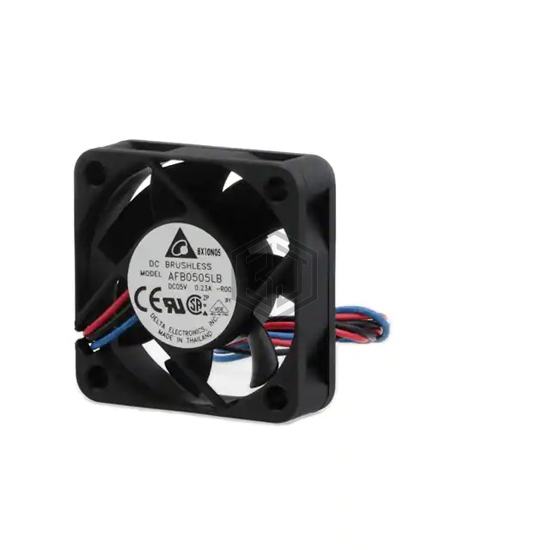

AFB0505LB-R00 - Delta Electronics - DC Brushless Fans (BLDC)

AFB0505LB-R00

Delta Electronics

50X50X15MM 5V DC FAN W/SPEED SEN

AFB0505LB-R00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 50X50X15MM 5V DC FAN W/SPEED SEN. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Square - 50mm L x 50mm H, termination 3 Wire Leads.

In Stock: 68

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated5VDC
Size / DimensionSquare - 50mm L x 50mm H
Width15.00mm
Air Flow9.9 CFM (0.277m³/min)
Static Pressure0.126 in H2O (31.4 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesLocked Rotor Sensor
Noise24.0dB(A)
Power (Watts)750 mW
RPM4000 RPM
Termination3 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, CSA, UL, VDE
Weight0.071 lb (32.21 g)

Frequently Asked Questions

AFB0505LB-R00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 50X50X15MM 5V DC FAN W/SPEED SEN

The operating temperature range of AFB0505LB-R00 is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of AFB0505LB-R00 is 5VDC.

The size of AFB0505LB-R00 is Square - 50mm L x 50mm H.
