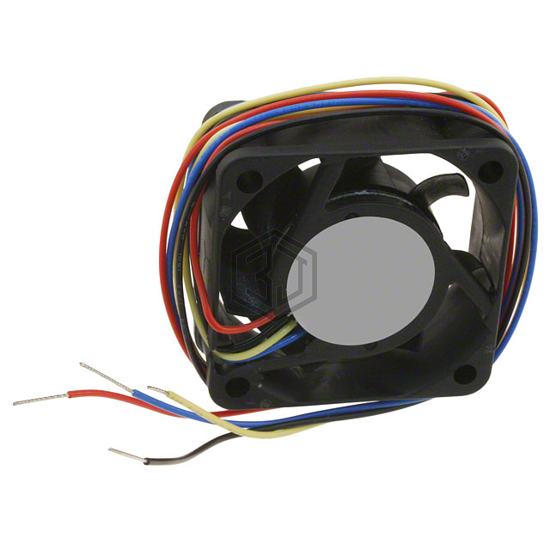

FAN AXIAL 40X15MM 12VDC WIRE
AFB0412VHB-TP29 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 40X15MM 12VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 4 Wire Leads.
In Stock: 2,414
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 15.00mm |
| Air Flow | 13.0 CFM (0.364m³/min) |
| Static Pressure | 0.459 in H2O (114.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 36.5dB(A) |
| Power (Watts) | 2.16 W |
| RPM | 9500 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.057 lb (25.85 g) |
