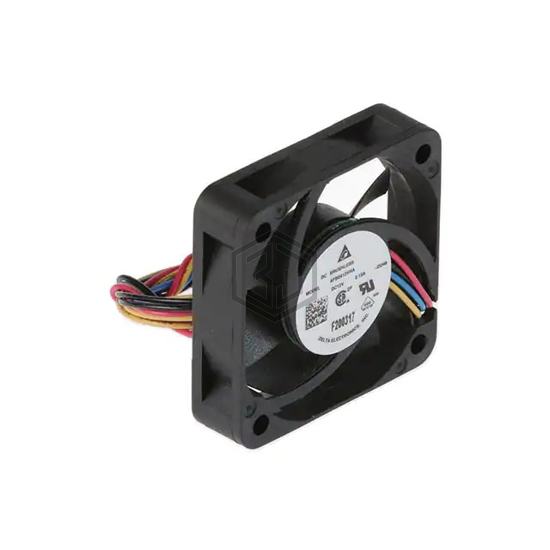

40X40X10MM 12V DC FAN W/PWM CONT
AFB0412VHA-DU48 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 40X40X10MM 12V DC FAN W/PWM CONT. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 4 Wire Leads.
In Stock: 1,819
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 10.00mm |
| Air Flow | 8.8 CFM (0.246m³/min) |
| Static Pressure | 0.224 in H2O (55.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 33.0dB(A) |
| Power (Watts) | 1.08 W |
| RPM | 8000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CSA, UR, VDE |
| Weight | 0.031 lb (14.06 g) |
Submit your RFQ for AFB0412VHA-DU48 and get a quote within 24 hours.
