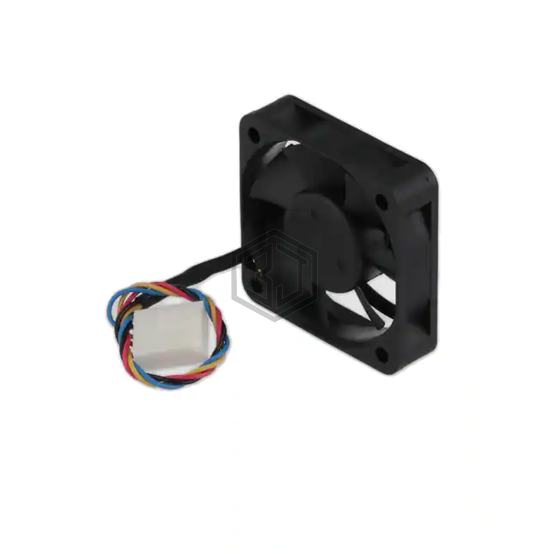

40X40X10MM 5V DC FAN W/SPEED CON
AFB0405MA-AFGE is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 40X40X10MM 5V DC FAN W/SPEED CON. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Square - 40mm L x 40mm H, termination 4 Position Rectangular Connector.
In Stock: 2,453
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 5VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 10.00mm |
| Air Flow | 5.7 CFM (0.160m³/min) |
| Static Pressure | 0.104 in H2O (26.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 21.5dB(A) |
| Power (Watts) | 250 mW |
| RPM | 5000 RPM |
| Termination | 4 Position Rectangular Connector |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cURus, VDE |
| Weight | 0.031 lb (14.06 g) |
