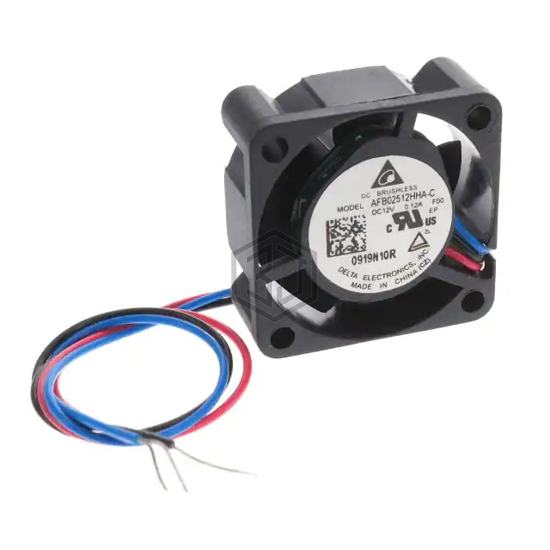

FAN AXIAL 25X10MM 12VDC 3-WIRE
AFB02512HHA-CF00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 25X10MM 12VDC 3-WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 25mm L x 25mm H, termination 3 Wire Leads.
In Stock: 662
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 25mm L x 25mm H |
| Width | 10.00mm |
| Air Flow | 2.4 CFM (0.067m³/min) |
| Static Pressure | 0.300 in H2O (74.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 28.0dB(A) |
| Power (Watts) | 960 mW |
| RPM | 13000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 0.018 lb (8.16 g) |
Submit your RFQ for AFB02512HHA-CF00 and get a quote within 24 hours.
