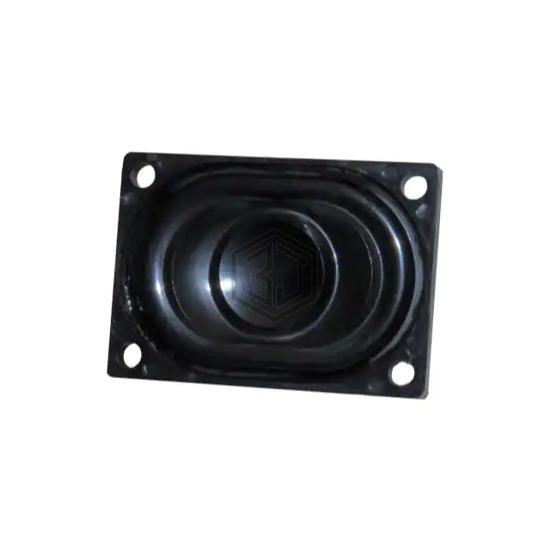

WATERPROOF DYNAMIC SPEAKER
SW400704-1 is a Speakers manufactured by DB Unlimited. WATERPROOF DYNAMIC SPEAKER. Key specifications: size / dimension 1.575" L x 1.118" W (40.00mm x 28.40mm), termination Solder Eyelet(s), ingress protection IP67 - Dust Tight, Waterproof, power - max 2.5 W.
In Stock: 901
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 750 Hz ~ 10 kHz |
| Frequency - Self Resonant | 750Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | - |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.575" L x 1.118" W (40.00mm x 28.40mm) |
| Height - Seated (Max) | 0.465" (11.80mm) |
Submit your RFQ for SW400704-1 and get a quote within 24 hours.
