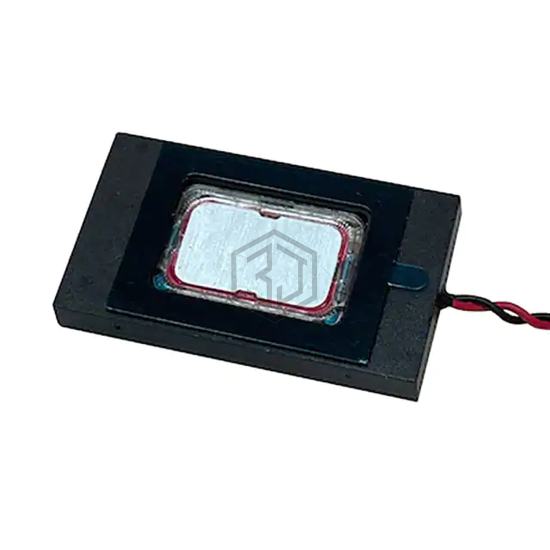

SPEAKER 8OHM 1W TOP PORT 95DB
SW301008-1 is a Speakers manufactured by DB Unlimited. SPEAKER 8OHM 1W TOP PORT 95DB. Key specifications: size / dimension 1.181" L x 0.689" W (30.00mm x 17.50mm), termination Wire Leads, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.5 W.
In Stock: 689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.05 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1.05kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 95.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylene |
| Material - Magnet | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 1.181" L x 0.689" W (30.00mm x 17.50mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
