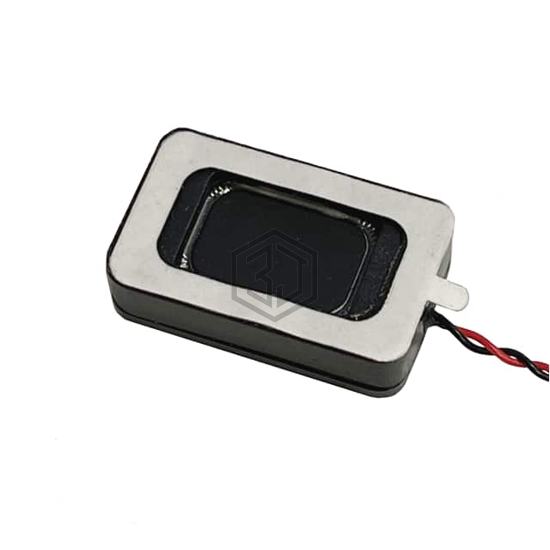

SPEAKER 8OHM 1W TOP PORT 92DB
SW221408-1 is a Speakers manufactured by DB Unlimited. SPEAKER 8OHM 1W TOP PORT 92DB. Key specifications: size / dimension 0.866" L x 0.512" W (22.00mm x 13.00mm), termination Wire Leads, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.2 W.
In Stock: 720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.4 kHz ~ 10 kHz |
| Frequency - Self Resonant | 1.4kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 92.00 |
| Efficiency - Testing | 1W/10cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.866" L x 0.512" W (22.00mm x 13.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
