WATERPROOF DYNAMIC SPEAKER

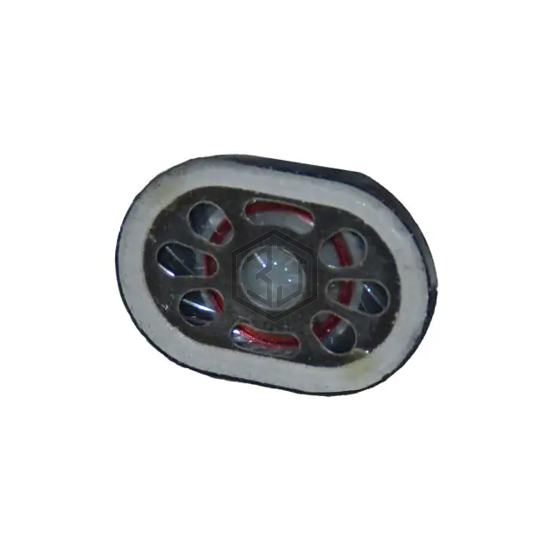

SW201108-1 is a Speakers manufactured by DB Unlimited. WATERPROOF DYNAMIC SPEAKER. Key specifications: size / dimension 0.787" L x 0.551" W (20.00mm x 14.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.2 W.
In Stock: 917
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.1 kHz ~ 10 kHz |
| Frequency - Self Resonant | 1.1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 97.00 |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Oval |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
