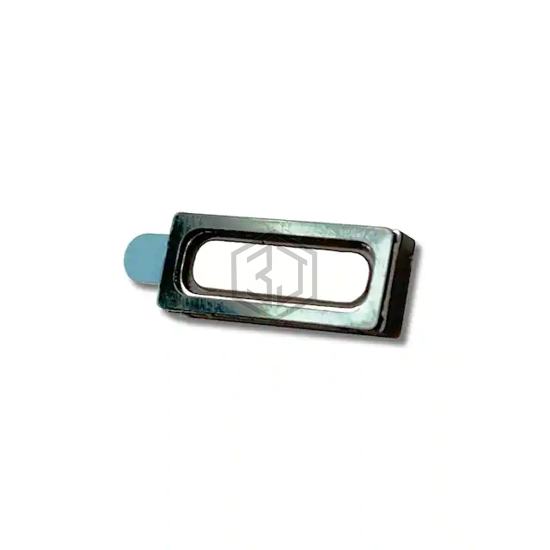

WATERPROOF MICRO SPEAKER
SW151008-1 is a Speakers manufactured by DB Unlimited. WATERPROOF MICRO SPEAKER. Key specifications: size / dimension 0.591" L x 0.236" W (15.00mm x 6.00mm), termination Spring Type, ingress protection Waterproof, power - max 800 mW.
In Stock: 894
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1 kHz ~ 10 kHz |
| Frequency - Self Resonant | 1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 500mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 800 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | - |
| Ingress Protection | Waterproof |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
Submit your RFQ for SW151008-1 and get a quote within 24 hours.
