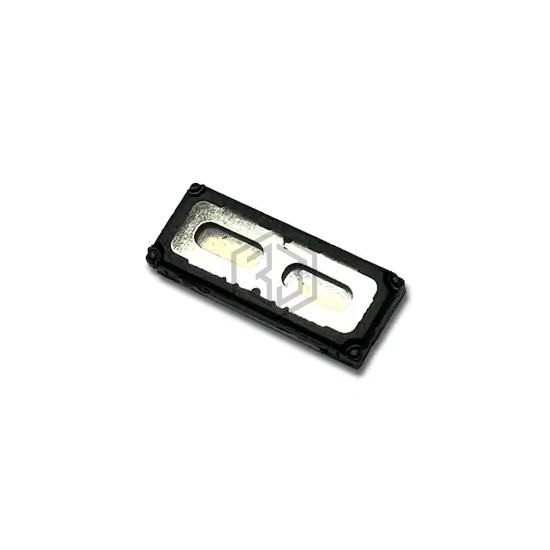

SW150908-1 - DB Unlimited - Speakers

SW150908-1

DB Unlimited

WATERPROOF MICRO SPEAKER

SW150908-1 is a Speakers manufactured by DB Unlimited. WATERPROOF MICRO SPEAKER. Key specifications: size / dimension 0.591" L x 0.236" W (15.00mm x 6.00mm), termination Spring Type, ingress protection Waterproof, power - max 700 mW.

In Stock: 775

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range900 Hz ~ 20 kHz
Frequency - Self Resonant1kHz
Impedance8 Ohms
Efficiency - dBA86.00
Efficiency - Testing500mW/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated500 mW
Power - Max700 mW
Port LocationTop
ShapeRectangular
Material - ConePolyetheretherketone (PEEK)
Material - Magnet-
Ingress ProtectionWaterproof
Ratings-
TerminationSpring Type
Size / Dimension0.591" L x 0.236" W (15.00mm x 6.00mm)
Height - Seated (Max)0.102" (2.60mm)

Frequently Asked Questions

SW150908-1 is a Speakers manufactured by DB Unlimited. WATERPROOF MICRO SPEAKER

The size of SW150908-1 is 0.591" L x 0.236" W (15.00mm x 6.00mm).

The termination type of SW150908-1 is Spring Type.

The protection rating of SW150908-1 is Waterproof.

The resistance of SW150908-1 is 8 Ohms.
