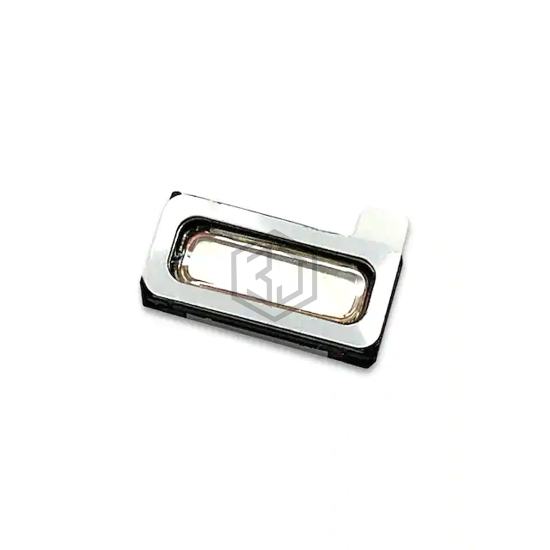

WATERPROOF MICRO SPEAKER
SW121308-2 is a Speakers manufactured by DB Unlimited. WATERPROOF MICRO SPEAKER. Key specifications: size / dimension 0.472" L x 0.217" W (12.00mm x 5.50mm), termination Spring Type, ingress protection Waterproof, power - max 600 mW.
In Stock: 236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.3 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1.3kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 89.00 |
| Efficiency - Testing | 400mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 400 mW |
| Power - Max | 600 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | - |
| Ingress Protection | Waterproof |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.120" (3.05mm) |
Submit your RFQ for SW121308-2 and get a quote within 24 hours.
