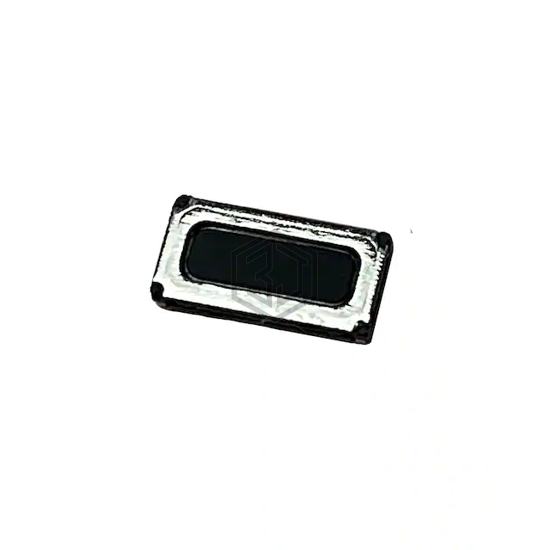

SW121108-1 - DB Unlimited - Speakers

SW121108-1

DB Unlimited

WATERPROOF MICRO SPEAKER

SW121108-1 is a Speakers manufactured by DB Unlimited. WATERPROOF MICRO SPEAKER. Key specifications: size / dimension 0.472" L x 0.236" W (12.00mm x 6.00mm), termination Spring Type, ingress protection Waterproof, power - max 500 mW.

In Stock: 738

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range1.1 kHz ~ 10 kHz
Frequency - Self Resonant1.1kHz
Impedance8 Ohms
Efficiency - dBA81.00
Efficiency - Testing250mW/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated250 mW
Power - Max500 mW
Port LocationTop
ShapeRectangular
Material - ConePolyetheretherketone (PEEK)
Material - Magnet-
Ingress ProtectionWaterproof
Ratings-
TerminationSpring Type
Size / Dimension0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Max)0.083" (2.10mm)

Frequently Asked Questions

SW121108-1 is a Speakers manufactured by DB Unlimited. WATERPROOF MICRO SPEAKER

The size of SW121108-1 is 0.472" L x 0.236" W (12.00mm x 6.00mm).

The termination type of SW121108-1 is Spring Type.

The protection rating of SW121108-1 is Waterproof.

The resistance of SW121108-1 is 8 Ohms.
