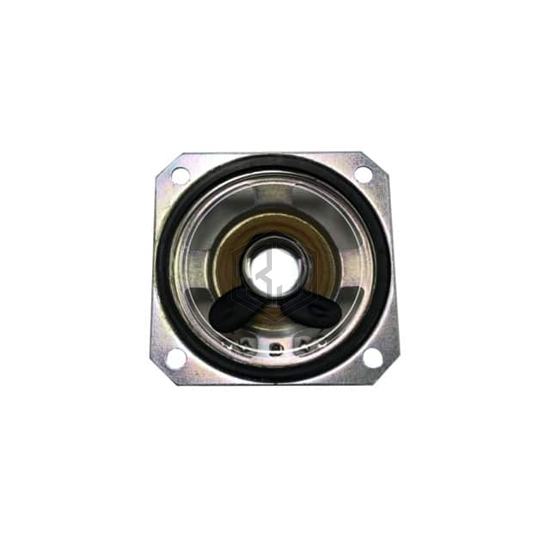

SM500808-1 - DB Unlimited - Speakers

SM500808-1

DB Unlimited

DYNAMIC SPEAKER

SM500808-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 1.988" L x 1.988" W (50.50mm x 50.50mm), termination Solder Eyelet(s), power - max 3 W, frequency range 800 Hz ~ 7 kHz.

In Stock: 4,288

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range800 Hz ~ 7 kHz
Frequency - Self Resonant800Hz
Impedance8 Ohms
Efficiency - dBA105.00
Efficiency - Testing100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated1.5 W
Power - Max3 W
Port LocationTop
ShapeRound, Square Frame
Material - ConePolyester, Polyethylene Terephthalate (PET)
Material - Magnet-
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension1.988" L x 1.988" W (50.50mm x 50.50mm)
Height - Seated (Max)0.472" (12.00mm)

Frequently Asked Questions

SM500808-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER

The size of SM500808-1 is 1.988" L x 1.988" W (50.50mm x 50.50mm).

The termination type of SM500808-1 is Solder Eyelet(s).

The power rating of SM500808-1 is 3 W.

The resistance of SM500808-1 is 8 Ohms.
