3J LIMITED
SM450508-1
DYNAMIC SPEAKER

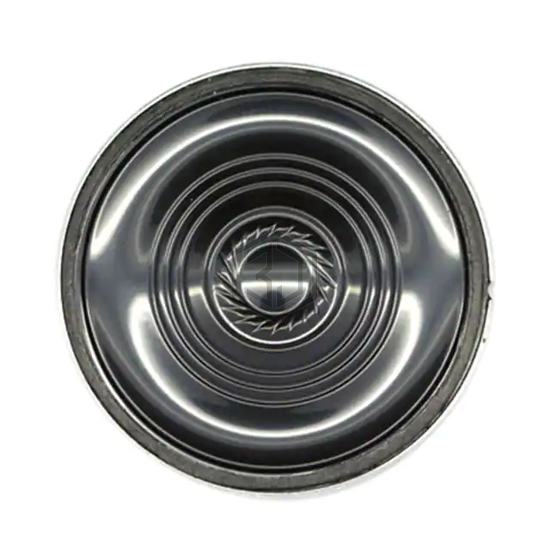

SM450508-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 1.772" Dia (45.00mm), termination Solder Pads, power - max 2 W, frequency range 500 Hz ~ 6 kHz.
In Stock: 788
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 6 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 102.00 |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.772" Dia (45.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
Frequently Asked Questions
SM450508-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER
The size of SM450508-1 is 1.772" Dia (45.00mm).
The termination type of SM450508-1 is Solder Pads.
The power rating of SM450508-1 is 2 W.
The resistance of SM450508-1 is 8 Ohms.
