3J LIMITED
SM400608-1
DYNAMIC SPEAKER

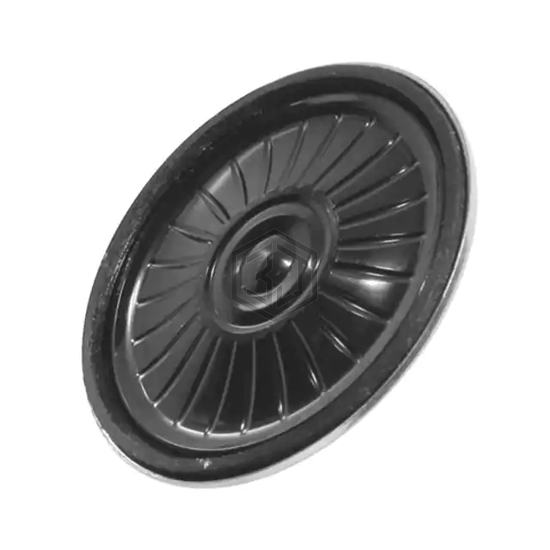

SM400608-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 1.575" Dia (40.00mm), termination Solder Pads, power - max 1.5 W, frequency range 600 Hz ~ 20 kHz.
In Stock: 82
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 20 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
Frequently Asked Questions
SM400608-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER
The size of SM400608-1 is 1.575" Dia (40.00mm).
The termination type of SM400608-1 is Solder Pads.
The power rating of SM400608-1 is 1.5 W.
The resistance of SM400608-1 is 8 Ohms.
