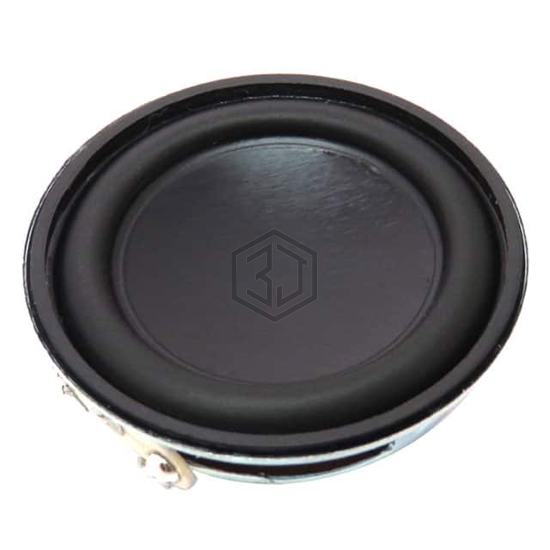

SM400204-1 - DB Unlimited - Speakers

SM400204-1

DB Unlimited

DYNAMIC SPEAKER

SM400204-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 1.575" Dia (40.00mm), termination Solder Eyelet(s), power - max 4 W, frequency range 220 Hz ~ 20 kHz.

In Stock: 46

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range220 Hz ~ 20 kHz
Frequency - Self Resonant220Hz
Impedance4 Ohms
Efficiency - dBA99.00
Efficiency - Testing100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated3 W
Power - Max4 W
Port LocationTop
ShapeRound
Material - Cone-
Material - Magnet-
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension1.575" Dia (40.00mm)
Height - Seated (Max)0.665" (16.90mm)

Frequently Asked Questions

SM400204-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER

The size of SM400204-1 is 1.575" Dia (40.00mm).

The termination type of SM400204-1 is Solder Eyelet(s).

The power rating of SM400204-1 is 4 W.

The resistance of SM400204-1 is 4 Ohms.
