3J LIMITED

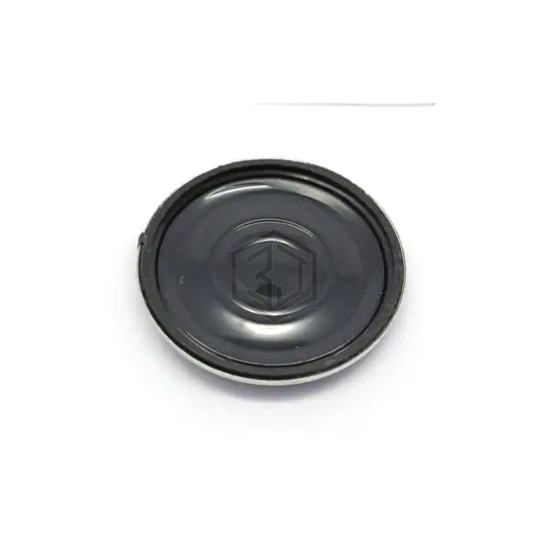

SM320608-1
DYNAMIC SPEAKER
SM320608-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 1.260" Dia (32.00mm), termination Solder Pads, power - max 1 W, frequency range 600 Hz ~ 7 kHz.
In Stock: 7,396
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 7 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.260" Dia (32.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
Frequently Asked Questions
SM320608-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER
The size of SM320608-1 is 1.260" Dia (32.00mm).
The termination type of SM320608-1 is Solder Pads.
The power rating of SM320608-1 is 1 W.
The resistance of SM320608-1 is 8 Ohms.
