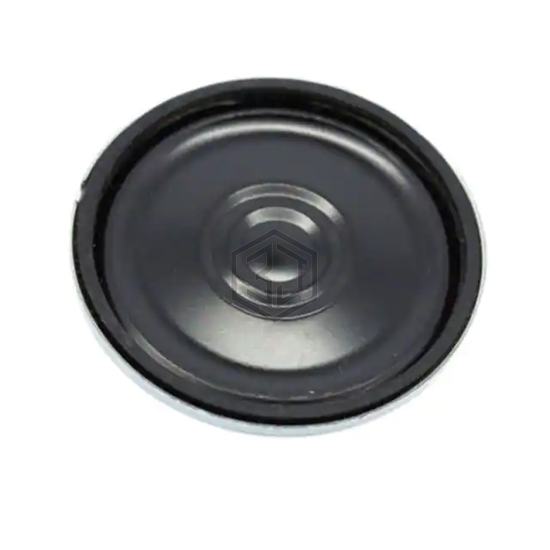

SM280632-1 - DB Unlimited - Speakers

SM280632-1

DB Unlimited

HIGH TEMP DYNAMIC SPEAKER

SM280632-1 is a Speakers manufactured by DB Unlimited. HIGH TEMP DYNAMIC SPEAKER. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Solder Pads, power - max 500 mW, frequency range 600 Hz ~ 6.5 kHz.

In Stock: 1,110

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range600 Hz ~ 6.5 kHz
Frequency - Self Resonant600Hz
Impedance32 Ohms
Efficiency - dBA91.00
Efficiency - Testing100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated250 mW
Power - Max500 mW
Port LocationTop
ShapeRound
Material - ConePolyester, Polyethylene Terephthalate (PET)
Material - Magnet-
Ingress Protection-
Ratings-
TerminationSolder Pads
Size / Dimension1.102" Dia (28.00mm)
Height - Seated (Max)0.173" (4.40mm)

Frequently Asked Questions

SM280632-1 is a Speakers manufactured by DB Unlimited. HIGH TEMP DYNAMIC SPEAKER

The size of SM280632-1 is 1.102" Dia (28.00mm).

The termination type of SM280632-1 is Solder Pads.

The power rating of SM280632-1 is 500 mW.

The resistance of SM280632-1 is 32 Ohms.
