3J LIMITED

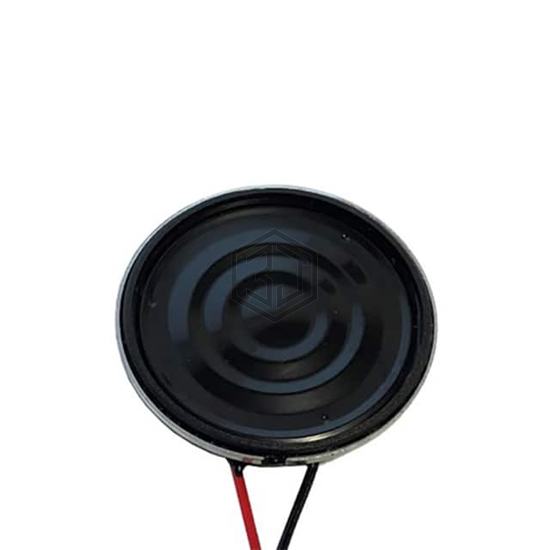

SM280604-2
DYNAMIC SPEAKER
SM280604-2 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Wire Leads, power - max 400 mW, frequency range 650 Hz ~ 20 kHz.
In Stock: 332
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 650 Hz ~ 20 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 200 mW |
| Power - Max | 400 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Frequently Asked Questions
SM280604-2 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER
The size of SM280604-2 is 1.102" Dia (28.00mm).
The termination type of SM280604-2 is Wire Leads.
The power rating of SM280604-2 is 400 mW.
The resistance of SM280604-2 is 4 Ohms.
