3J LIMITED
SM260608-1

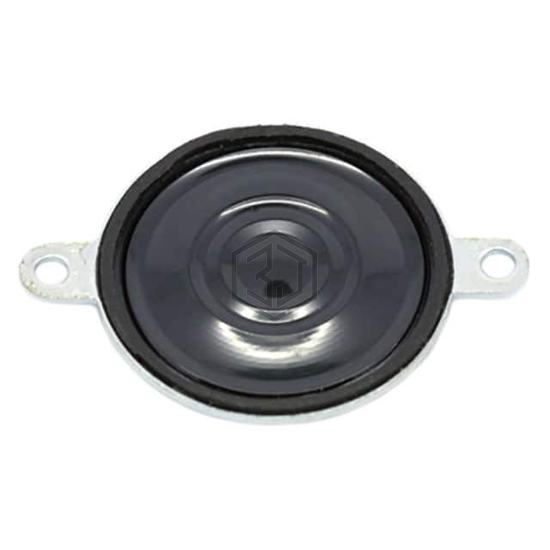

DYNAMIC SPEAKER
SM260608-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 1.024" Dia (26.00mm), termination Solder Pads, power - max 600 mW, frequency range 660 Hz ~ 5 kHz.
In Stock: 566
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 660 Hz ~ 5 kHz |
| Frequency - Self Resonant | - |
| Impedance | 8 Ohms |
| Efficiency - dBA | - |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 600 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.024" Dia (26.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Frequently Asked Questions
SM260608-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER
The size of SM260608-1 is 1.024" Dia (26.00mm).
The termination type of SM260608-1 is Solder Pads.
The power rating of SM260608-1 is 600 mW.
The resistance of SM260608-1 is 8 Ohms.
