3J LIMITED
SM231508-1
DYNAMIC SPEAKER

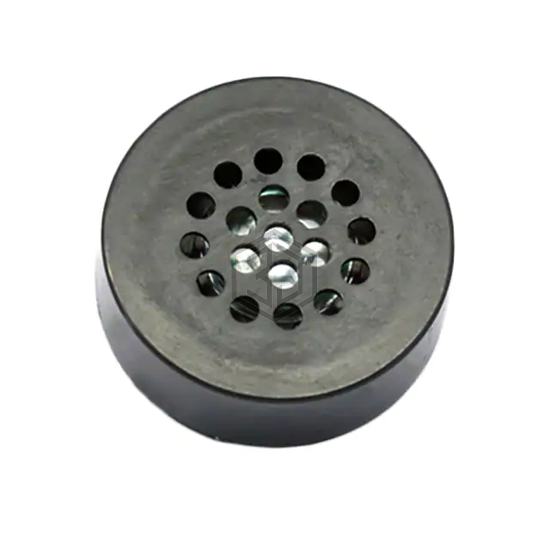

SM231508-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER. Key specifications: size / dimension 0.898" Dia (22.80mm), termination PC Pins, power - max 400 mW, frequency range 1.5 kHz ~ 4 kHz.
In Stock: 379
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.5 kHz ~ 4 kHz |
| Frequency - Self Resonant | - |
| Impedance | 8 Ohms |
| Efficiency - dBA | 75.00 |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 300 mW |
| Power - Max | 400 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.898" Dia (22.80mm) |
| Height - Seated (Max) | 0.343" (8.70mm) |
Frequently Asked Questions
SM231508-1 is a Speakers manufactured by DB Unlimited. DYNAMIC SPEAKER
The size of SM231508-1 is 0.898" Dia (22.80mm).
The termination type of SM231508-1 is PC Pins.
The power rating of SM231508-1 is 400 mW.
The resistance of SM231508-1 is 8 Ohms.
