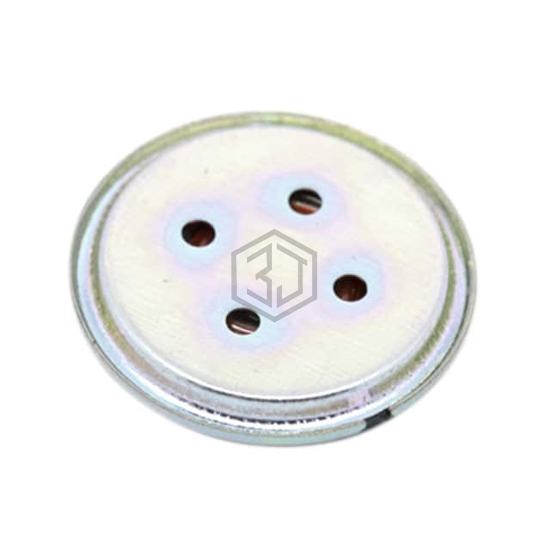

SM200707-1 - DB Unlimited - Speakers

SM200707-1

DB Unlimited

HIGH TEMP DYNAMIC MICRO SPEAKER

SM200707-1 is a Speakers manufactured by DB Unlimited. HIGH TEMP DYNAMIC MICRO SPEAKER. Key specifications: size / dimension 0.787" Dia (20.00mm), termination Solder Pads, power - max 400 mW, frequency range 780 Hz ~ 5 kHz.

In Stock: 995

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range780 Hz ~ 5 kHz
Frequency - Self Resonant780Hz
Impedance7 Ohms
Efficiency - dBA87.00
Efficiency - Testing100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated200 mW
Power - Max400 mW
Port LocationTop
ShapeRound
Material - ConePolyethylenimine (PEI)
Material - Magnet-
Ingress Protection-
Ratings-
TerminationSolder Pads
Size / Dimension0.787" Dia (20.00mm)
Height - Seated (Max)0.150" (3.80mm)

Frequently Asked Questions

SM200707-1 is a Speakers manufactured by DB Unlimited. HIGH TEMP DYNAMIC MICRO SPEAKER

The size of SM200707-1 is 0.787" Dia (20.00mm).

The termination type of SM200707-1 is Solder Pads.

The power rating of SM200707-1 is 400 mW.

The resistance of SM200707-1 is 7 Ohms.
