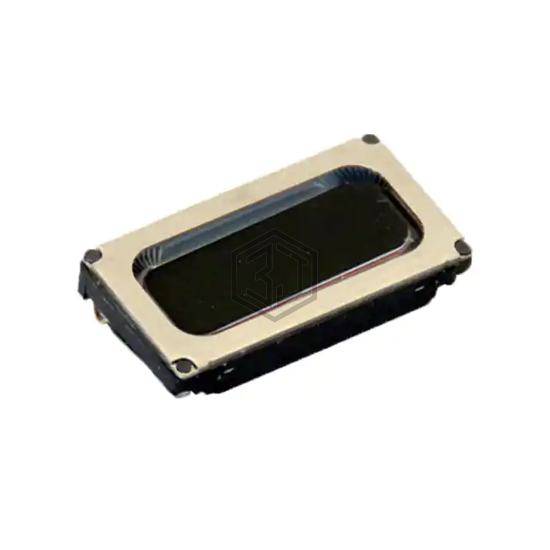

DYNAMIC MICRO SPEAKER
SM150906-1 is a Speakers manufactured by DB Unlimited. DYNAMIC MICRO SPEAKER. Key specifications: size / dimension 0.591" L x 0.315" W (15.00mm x 8.00mm), termination Spring Type, power - max 1 W, frequency range 900 Hz ~ 10 kHz.
In Stock: 789
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 900 Hz ~ 10 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 6.5 Ohms |
| Efficiency - dBA | - |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 670 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for SM150906-1 and get a quote within 24 hours.
