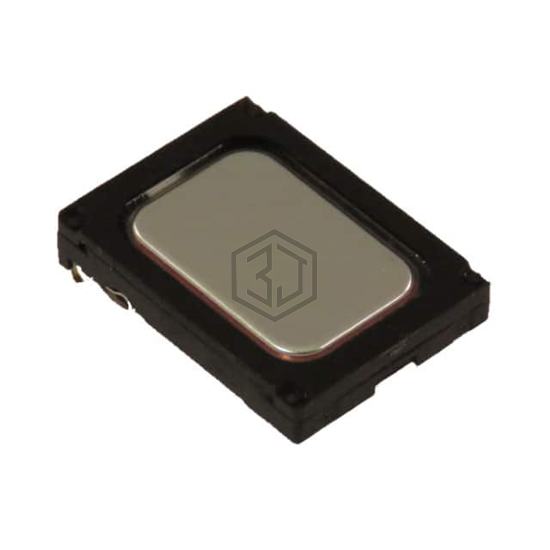

DYNAMIC MICRO SPEAKER
SM150808-9 is a Speakers manufactured by DB Unlimited. DYNAMIC MICRO SPEAKER. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Spring Type, ingress protection IP67 - Dust Tight, Waterproof, power - max 1 W.
In Stock: 612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 10 kHz |
| Frequency - Self Resonant | 850Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 92.00 |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SM150808-9 and get a quote within 24 hours.
